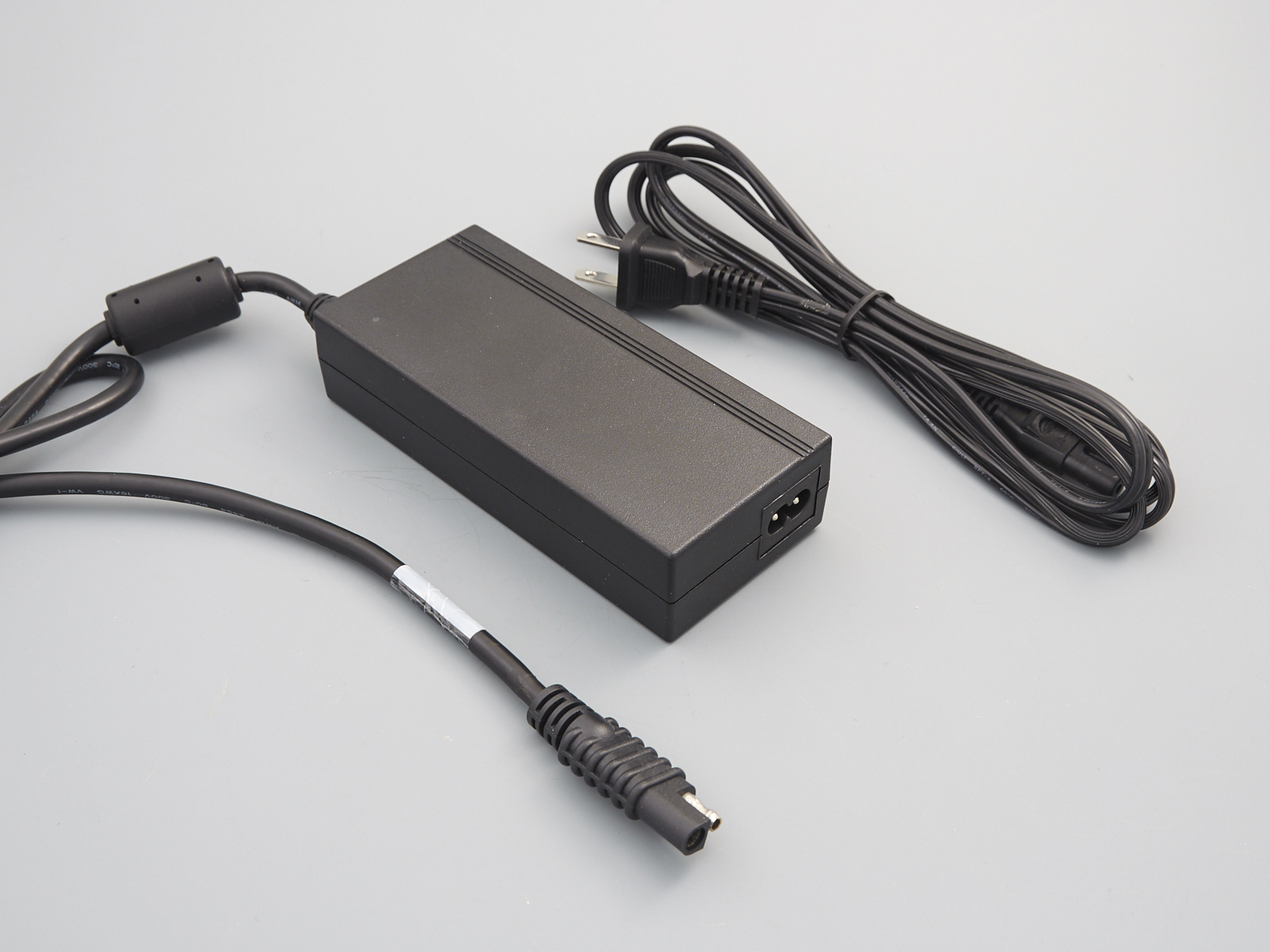

24V High Cap Power Supply w/SAE Connector 12.5 Amp

Part Number: SN-24V-03-SAE

$549.00

VOLUME-BASED PRICING

Quantity	Price
1+	$549.00
50+	$543.51
100+	$538.02
250+	$532.53
500+	$531.43
1000+	$529.78
2000+	$527.04

Availability:

In Production

Standard Lead Time:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

This 24V 12.5 Amp power supply used to power SN-926-xx pass thru chargers

Voltage - Input 90 ~ 264 VAC
Voltage - Output 24VCurrent - Output (Max) 12.5A
Power (Watts) 300 W
No Load Power Consumption 500mW (Max) Polarization
Efficiency Level VI
Operating Temperature -30°C ~ 60°C
Output Connector BA-5590/BB-2590
Cord Length31.5" (0.8m)
Input Connector IEC 320-C14 (UK & EU available)
Size / Dimension 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm)
Approval Agency CE
Built in Thermal Shutdown Protection

This 24V 12.5 Amp power supply used to power SN-926-xx pass thru chargers

Voltage - Input 90 ~ 264 VAC
Voltage - Output 24VCurrent - Output (Max) 12.5A
Power (Watts) 300 W
No Load Power Consumption 500mW (Max) Polarization
Efficiency Level VI
Operating Temperature -30°C ~ 60°C
Output Connector BA-5590/BB-2590
Cord Length31.5" (0.8m)
Input Connector IEC 320-C14 (UK & EU available)
Size / Dimension 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm)
Approval Agency CE
Built in Thermal Shutdown Protection
