BB-2590 SMBUS Battery Connector Kit

Part Number: SN0019-4NA-1-1

$89.50

VOLUME-BASED PRICING

Availability:

862 Can Ship Immediately

Standard Lead Time:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

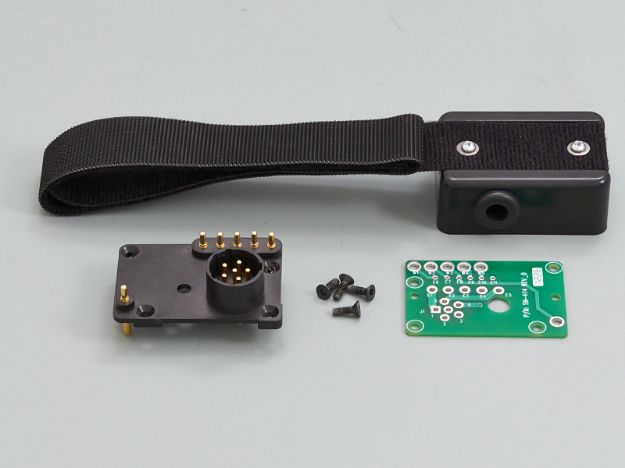

Includes BB2590 SMBUS Connector, PCB, Cover, Velcro Strap, Screws, Nylon Pin Caps, Grommet, Data Pogo Pins
Fits only Rechargeable Batteries (will not fit BA-5590)
All SMBUS Pogo Pins Included
Velcro Strap To Secure Connector to Battery
Wire Exit hole .30" Diameter
Accepts up to AWG 14 for Power
Compatible with all Rechargable Batteries with SMBUS Technology
Connector is available without Cover & Velcro Strap
Thermal: UL94 V0 @ 0.71mm and 5VA @ 2.0mm flame rating
Material: Polybutylene Terephthalate (PBT) with a 30% glass fill
Amp Rating: 20 Amps per pin
Berry compliant

Includes BB2590 SMBUS Connector, PCB, Cover, Velcro Strap, Screws, Nylon Pin Caps, Grommet, Data Pogo Pins
Fits only Rechargeable Batteries (will not fit BA-5590)
All SMBUS Pogo Pins Included
Velcro Strap To Secure Connector to Battery
Wire Exit hole .30" Diameter
Accepts up to AWG 14 for Power
Compatible with all Rechargable Batteries with SMBUS Technology
Connector is available without Cover & Velcro Strap
Thermal: UL94 V0 @ 0.71mm and 5VA @ 2.0mm flame rating
Material: Polybutylene Terephthalate (PBT) with a 30% glass fill
Amp Rating: 20 Amps per pin
Berry compliant

HT-800 Silicone Gasket for CONN-BB2590SMBUS assemblies
