Maximize Your Power Connection with the NATO 100 AMP Plug

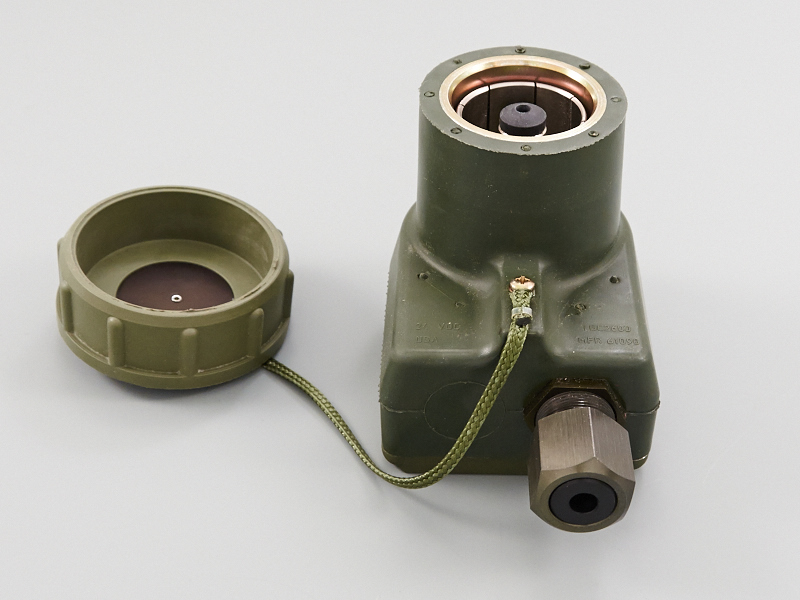

Power connections in demanding environments require robust solutions, and the NATO 100 AMP Plug stands out as the pinnacle of reliability and durability. With a part number of SN-215 and an NSN of 5935-01-625-6118, this plug is not just any electrical component; it's a testament to engineering excellence conforming to STANAG 4074. The plug's body, made from molded rubber, and contacts crafted from a copper alloy with an electroless nickel finish, are designed to withstand the harshest conditions. This plug is waterproof, corrosion-resistant against petroleum products, fungus, and ozone, and it boasts a remarkable temperature rating from -55C to +100C. Whether it's for military, industrial, or commercial use, the NATO 100 AMP Plug ensures a secure and reliable connection every time.
Features That Set the NATO 100 AMP Plug Apart
- Durable Construction: Molded rubber plug body and insulator with copper alloy contacts for unparalleled durability.
- High Performance: Supports 100 AMPS continuously, with 400 AMPS intermittent duty, and a maximum contact resistance of 0.5 milliohms.
- Environmental Resilience: Fully waterproof and resistant to corrosion, fungus, and ozone exposure, ensuring reliable performance in any setting.
- Compatibility: Mates perfectly with SN-216 (NATO Receptacle) for a secure connection, enhancing operational flexibility.
The Engineering Behind the NATO 100 AMP Plug
The NATO 100 AMP Plug, with its meticulous design and adherence to the stringent standards of STANAG 4074, represents a significant leap forward in plug technology. The use of electroless nickel finish on copper alloy contacts not only enhances electrical conductivity but also provides an extra layer of protection against corrosion. The plug's capability to handle 100 AMPS of continuous power and up to 400 AMPS intermittently makes it an ideal choice for applications requiring high power in challenging environments. Its construction is a perfect blend of strength and functionality, designed to meet the rigorous demands of military, industrial, and heavy-duty commercial use.
Specifications and Unmatched Quality of the NATO 100 AMP Plug
- Conformance: Meets STANAG 4074 standards for military use.
- Plug Body: Constructed from durable molded rubber for lasting use.
- Contacts: Made from copper alloy with an electroless nickel finish for optimal conductivity and corrosion resistance.
- Insulator: Molded rubber ensures the plug is fully insulated and safe.
- Electrical Rating: Operates on 24-28 VDC, with a capacity of 100 AMPS continuous and 400 AMPS intermittent duty.
- Contact Resistance: Maintains a maximum of 0.5 milliohms to ensure efficient power transmission.
- Environmental Protection: Waterproof and resistant to corrosion from petroleum products, fungus, and ozone.
- Compatibility: Designed to mate seamlessly with SN-216 (NATO Receptacle).
- Weight: Light-weight at 1.2 lbs for easy handling and installation.
- Temperature Endurance: Suitable for extreme conditions with a temperature rating of -55C to +100C.
- Cable Entrance: Accommodates a 3/4" diameter cable, with optional strain relief for smaller OD cable diameters.
- Terminal Connection: Bolt size for ring terminals is 3/8", with a torque value of 200 inch/pounds for secure fastening.
- Cross Reference: Compatible with TGC 2600 and USMC 09014G0626 models for versatile use.
- Regulatory Compliance: RoHs compliant, ensuring environmental safety.
- Manufacturing Origin: Proudly manufactured in the United States, ensuring high quality and reliability.
Why the NATO 100 AMP Plug Is the Preferred Choice for Power Solutions
The NATO 100 AMP Plug exemplifies the pinnacle of power connection technology, offering unparalleled durability, reliability, and performance. Its robust design and comprehensive features make it the go-to choice for professionals in military, industrial, and commercial sectors. Whether you're operating in extreme temperatures, facing potential exposure to corrosive substances, or require a high-capacity power connection, the NATO 100 AMP Plug delivers on all fronts. Its compliance with STANAG 4074 and the meticulous attention to detail in its construction underscore its superior quality, making it an indispensable tool in any power connection application.
