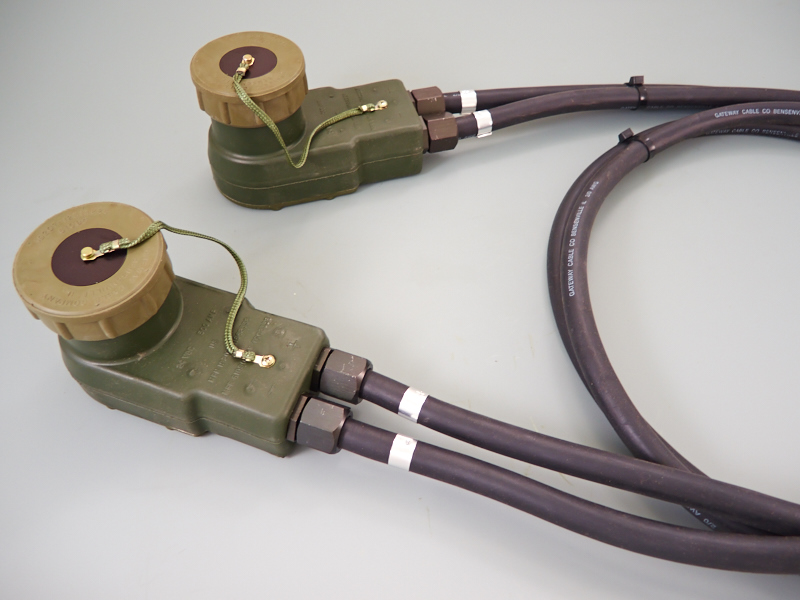

Unlocking Efficiency: NATO 1000 AMP Jumper Cable 50 Foot
Equip your military operations with the NATO 1000 AMP Jumper Cable Male to Male 50 Foot, part number SN-224-50, designed for fast and efficient vehicle-to-vehicle battery jump-starting. Its length and power ensure that even disabled vehicles can quickly return to action, crucial in operational scenarios where time is of the essence.
Key Features
- Extended Reach: At 50 feet, this cable provides exceptional reach for vehicle-to-vehicle connections, also available in 9', 12', and 25'.
- Powerful Capability: Delivers 1000 amps for 6 minutes, supporting quick and effective power transfers.
- Robust Construction: Features a single-piece polychloroprene moulding and tin-plated copper alloy contacts for durability.
What Sets This Cable Apart
The NATO 1000 AMP Jumper Cable is tailor-made for military use, offering not only the power and length needed for diverse environments but also superior resistance to harsh conditions.
Comprehensive Specifications
- Weight and Length: Weighs 42 lbs and stretches 50 feet, balancing manageability with comprehensive coverage.
- Electrical Performance: Rated for 24-28 VDC and 110V DC, optimized for military vehicle standards.
- Environmental Resilience: Built to resist corrosion, impacts from petroleum products, fungus, and ozone, with a maximum contact resistance of 0.5 milliohms.
- Technical Compatibility: Mates with SN-216 (NATO Receptacle) and adheres to rigorous standards like STANAG 4074.
- Operational Range: Functions effectively within a temperature range of -55C to +100C.
- Wire and Insulation: Uses 2/0 AWG wire and includes a neoprene insulator for added durability and safety.
- Cross Reference: # 11682336-2 (NSN: 6150-01-310-1829) (NIN: 01310829)
The Ideal Choice for Field Deployment
This 50-foot NATO jumper cable is not just a tool but a critical asset in maintaining the operational readiness of military vehicles, proving indispensable in both routine and emergency scenarios.
