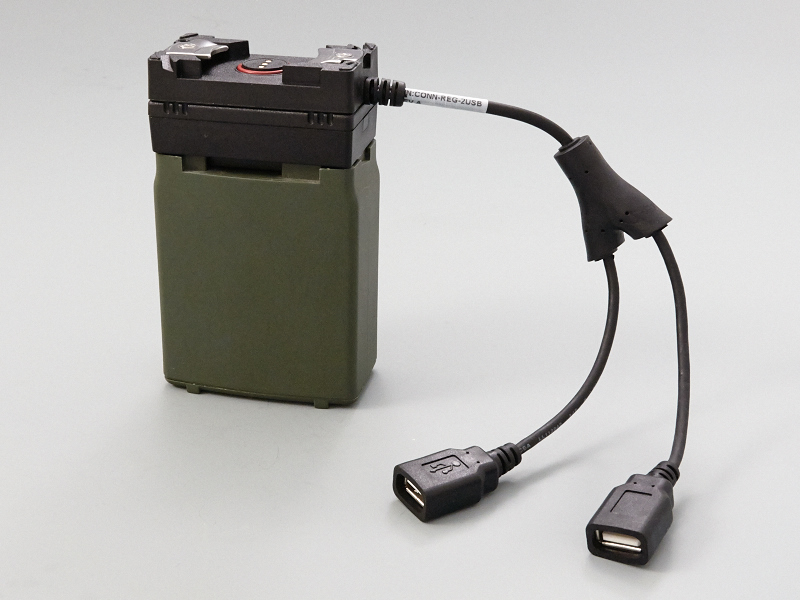

Pass-Thru Battery Adapter with Dual 5V USB Output

Part Number: SN-832-USB

NSN: 5995-01-665-9785

$159.50

VOLUME-BASED PRICING

Availability:

13 Can Ship Immediately

Lead Time for additional units:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

Environmental & Export Classifications

Provides Dual 5V 3A USB regulated output while attched or not to the radio
Weight: 3 Ounces
Cable Length: 6"
Over molded "Y" splitter and USB housing
Connector Height: 0.67 Inches
Spring Loaded Locking Pin Locks Battery Into Place
Contact Pogo pins are dome shaped
Environment: Dust and /Sandproof, Watertight up to IP67/NEMA 6P
AWG 22, 3 Conductors (1) Ground, (1) Power, (1) Data) + Drain
Temperature Rating: -40C to +85C
Corrosion resistant, non-conductive connectors Rugged design built to withstand harsh environments
Compatibility: AN/PRC-148 MBITR/JEM, AN/PRC-152,font-size: 14px;">Tactical ROVER-P (SIR) 2.5 Persistant Systems Wave Relay Gen4 (MPU4)
Battery Cross Ref:ALI-130, 16041-2100-02, 1600515-7, 12041-2100-02

Provides Dual 5V 3A USB regulated output while attched or not to the radio
Weight: 3 Ounces
Cable Length: 6"
Over molded "Y" splitter and USB housing
Connector Height: 0.67 Inches
Spring Loaded Locking Pin Locks Battery Into Place
Contact Pogo pins are dome shaped
Environment: Dust and /Sandproof, Watertight up to IP67/NEMA 6P
AWG 22, 3 Conductors (1) Ground, (1) Power, (1) Data) + Drain
Temperature Rating: -40C to +85C
Corrosion resistant, non-conductive connectors Rugged design built to withstand harsh environments
Compatibility: AN/PRC-148 MBITR/JEM, AN/PRC-152,font-size: 14px;">Tactical ROVER-P (SIR) 2.5 Persistant Systems Wave Relay Gen4 (MPU4)
Battery Cross Ref:ALI-130, 16041-2100-02, 1600515-7, 12041-2100-02
