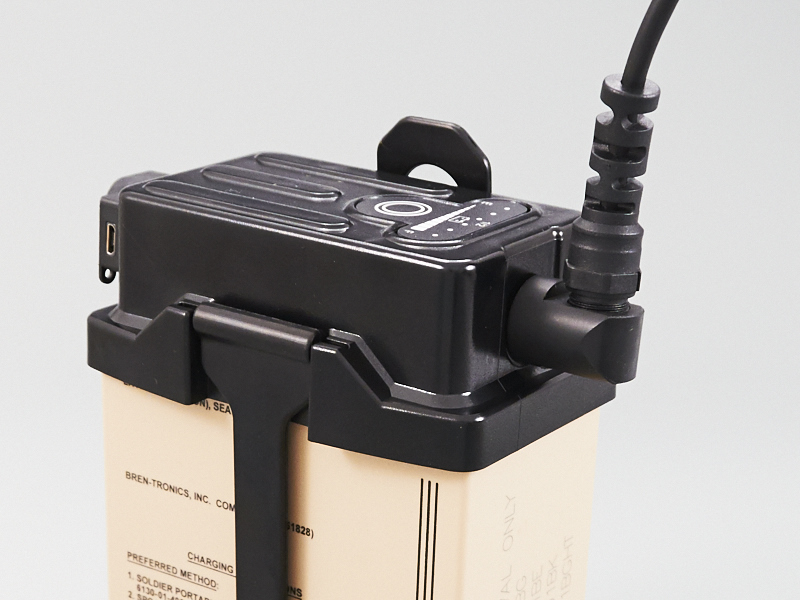

Pass-Thru Charger 12V 360° Exit

Part Number: SN-926-A12-360D

Price:

Price: $599.50

VOLUME-BASED PRICING

Availability:

In Production

Standard Lead Time:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

Wire Exits to a 360 degree bend
Input Charging Voltage: 10.5-19.5VDC (SAE Port)
Output Voltage: 12VDC (unregulated)
Current: 15 Amps Continuous (10 Amp Daughter Board now integrated)
Input power charges battery and simultaneously power load
Automatically switches over to battery power once external power is removed and back once power is restored
Switch time: 3 milliseconds from input power to battery power
State of Charge indicator (while charging)
Battery Fuel indicator (when on battery power)
Powers up as soon as externl power is applied
On/Off switch to power down circuit during storage
All SMBus pins populated
Cable length: 6 Feet
Wire: AWG 16/AWG 22, Wire OD: .305"
Weight: 12 oz.
Watertight
Environmental strap impervious to UV light
Operating Temperature: -40°C to +60°C
Rugged Design to absorb impact
Great for use as battery backup
For Rechargeable BB-2590 Li-Ion Batteries
STEP CAD Model available upon request

Wire Exits to a 360 degree bend
Input Charging Voltage: 10.5-19.5VDC (SAE Port)
Output Voltage: 12VDC (unregulated)
Current: 15 Amps Continuous (10 Amp Daughter Board now integrated)
Input power charges battery and simultaneously power load
Automatically switches over to battery power once external power is removed and back once power is restored
Switch time: 3 milliseconds from input power to battery power
State of Charge indicator (while charging)
Battery Fuel indicator (when on battery power)
Powers up as soon as externl power is applied
On/Off switch to power down circuit during storage
All SMBus pins populated
Cable length: 6 Feet
Wire: AWG 16/AWG 22, Wire OD: .305"
Weight: 12 oz.
Watertight
Environmental strap impervious to UV light
Operating Temperature: -40°C to +60°C
Rugged Design to absorb impact
Great for use as battery backup
For Rechargeable BB-2590 Li-Ion Batteries
STEP CAD Model available upon request
