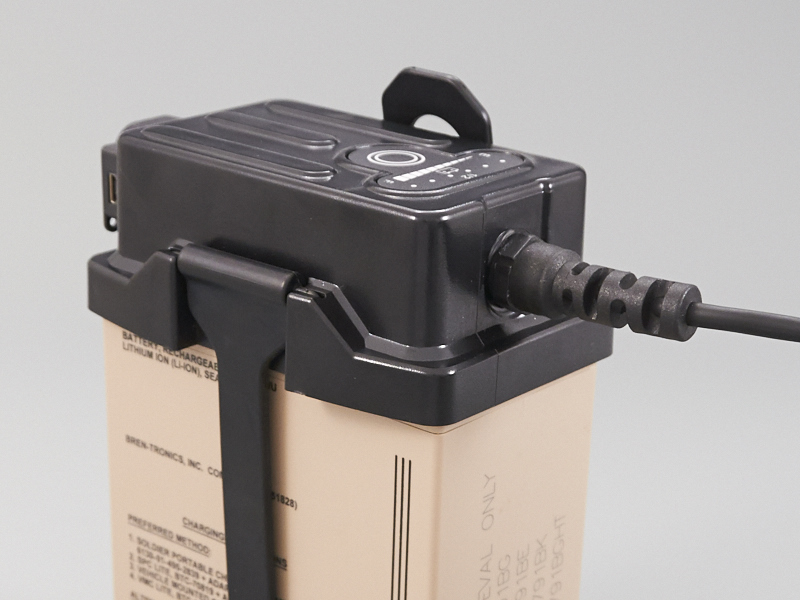

Picture of Pass-Thru Charger 12V Output, SAE Input Port (no SMBUS)

Picture of Pass-Thru Charger 12V Output, SAE Input Port (no SMBUS)

Picture of Pass-Thru Charger 12V Output, SAE Input Port (no SMBUS)

Picture of Pass-Thru Charger 12V Output, SAE Input Port (no SMBUS)

Pass-Thru Charger 12V Output, SAE Input Port (no SMBUS)

Part Number: SN-926-B12

Price:

Price: $599.50

VOLUME-BASED PRICING

Quantity	Price
1+	$599.50
50+	$593.50
100+	$575.52
250+	$563.53
500+	$551.54
1000+	$539.55
2000+	$527.56

Availability:

20 Can Ship Immediately

Standard Lead Time:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

Input Charging Voltage: 10.5-19.5VDC
Output Voltage: 12VDC (unregulated)
Current: 15 Amps Continuous
Input connector: SAE 2 Pin
Input power charges battery and simultaneously power load
Automatically switches over to battery power once external power is removed
Switch time: 3 milliseconds from input power to battery power
State of Charge indicator (while charging)
Battery Fuel indicator (when on battery power)
On/Off switch to power down circuit during storage
Cable length: 6 Feet
Wire: AWG 16, OD: 0.20"
Weight: 12 oz.
Watertight IP67
Environmental strap impervious to UV light
Operating Temperature: -40°C to +60°C
Rugged Design to absorb impact
Great for use as battery backup
For Rechargeable BB-2590 Li-Ion Batteries
STEP CAD Model available upon request
