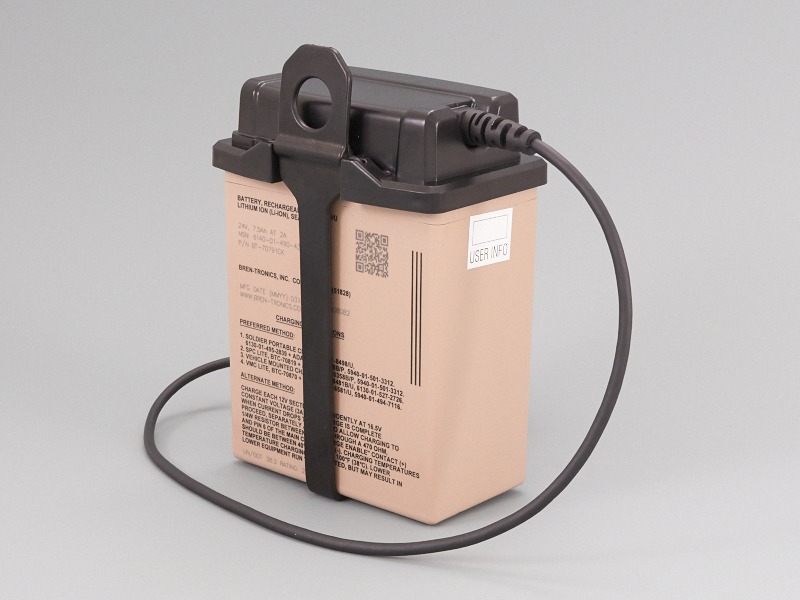

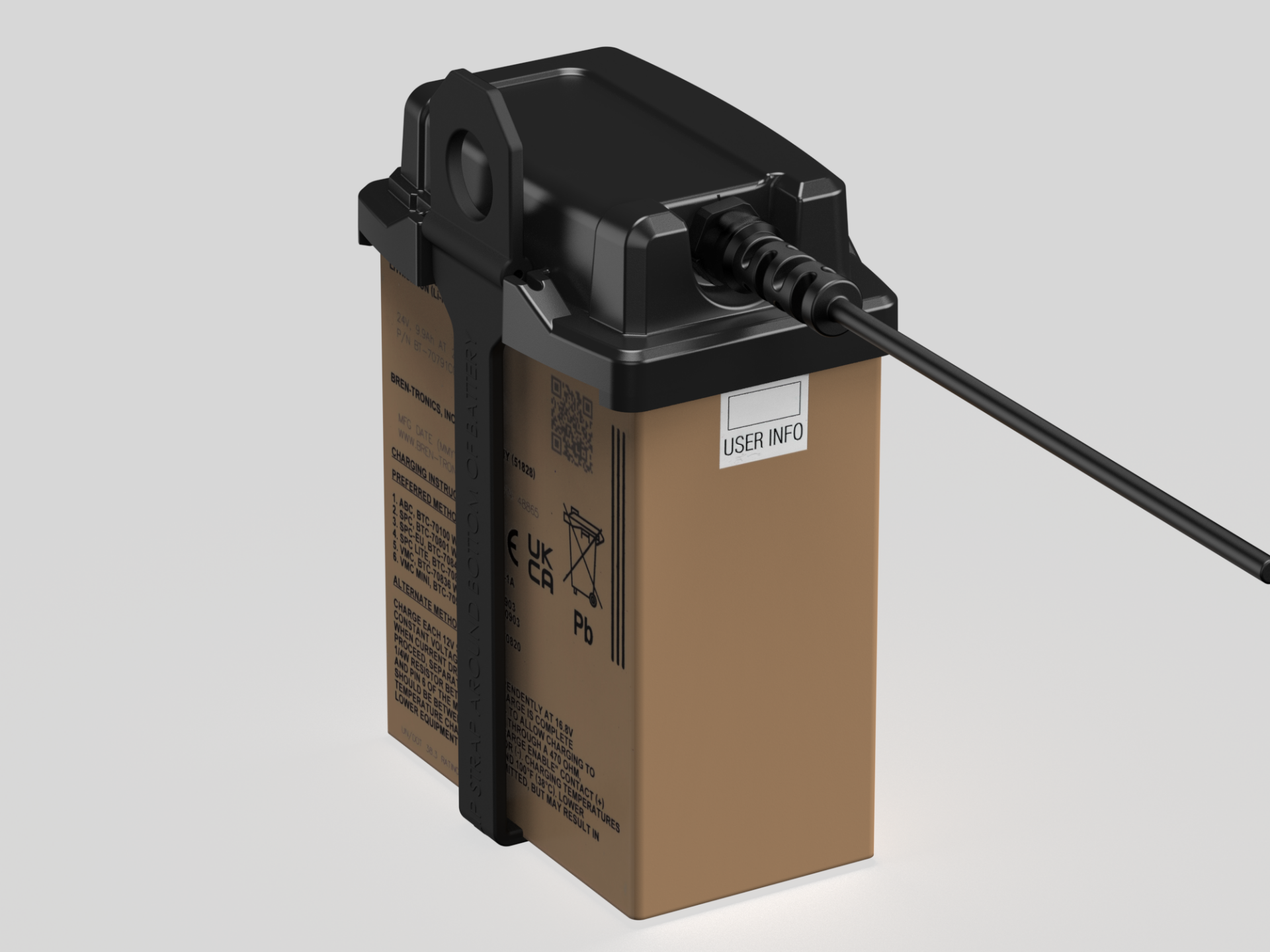

Picture of 24V Watertight BB-2590 SMBUS Cable, 6 Foot Length

24V Watertight BB-2590 SMBUS Cable, 6 Foot Length

Part Number: SN-404-24-06

$179.50

VOLUME-BASED PRICING

Quantity	Price
1+	$179.50
50+	$175.01
100+	$170.52
250+	$166.04
500+	$161.55
1000+	$157.06
2000+	$152.58

Availability:

3 Can Ship Immediately

Lead Time for additional units:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

Environmental & Export Classifications

ROHS Status	ROHS3 Compliant
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8544.42.2000

Wired in series (24V unregulated) (AWG 16)
All SMBUS signals wired (AWG 22)
Cable Length: 6 Foot
Cable: 10 Conductor shileded 6 AWG 22, 4 AWG 16 for Data + Power OD: .305"
IP67 Rated (Watertight at 1 Meter Depth for 30 Minutes)
Operating Temperature: -40C to +85C
Rubber Strap and Internal Gasket material EPSM
Cap Material: Polycarbonate
Fits both rechargeable and non-rechargeable batters (BA-XX90, BB-XX90)
Compatible with all Rechargable Batteries with SMBUS Technology

Wired in series (24V unregulated) (AWG 16)
All SMBUS signals wired (AWG 22)
Cable Length: 6 Foot
Cable: 10 Conductor shileded 6 AWG 22, 4 AWG 16 for Data + Power OD: .305"
IP67 Rated (Watertight at 1 Meter Depth for 30 Minutes)
Operating Temperature: -40C to +85C
Rubber Strap and Internal Gasket material EPSM
Cap Material: Polycarbonate
Fits both rechargeable and non-rechargeable batters (BA-XX90, BB-XX90)
Compatible with all Rechargable Batteries with SMBUS Technology
